1" Tankbuddy Valve PumpBuddy High Flow Large Water Discharge 25mm Float Valve Double Water Level and Adjustable Water Level (TB25)

Installation Instructions 1. Flush Debris from pipelines thoroughly before fitting 2. Ensure valve is mounted horizontally in tank with outlet pointing down 3. Use thread seal tape on Inlet thread 4. Inject water into floats up to water limited line 5. Set level stopper at desired approximate lower on position and tie off cord at end of arm. (Use double hole end loop system for easy adjustment and tie off) 6. Ensure float is in correct position between stops 7. Set adjustable level adjuster for desired off position 8. Cut off excess cord to desired length

• 1.The TANKBUDDY VALVE is patented product, It is ideal for water tanks which are filled by running water or a pressure system controlled by water pump. The valve gives a level difference which is adjustable from 50mm up to 2.5m to minimise starting and stopping of running water or the pump system(Level difference accept Customization).
• 2.APPLICATION：water tank、water tower、water pool、Irrigation、 animaldrinking、Sprayequipment、swimmingpool etc.

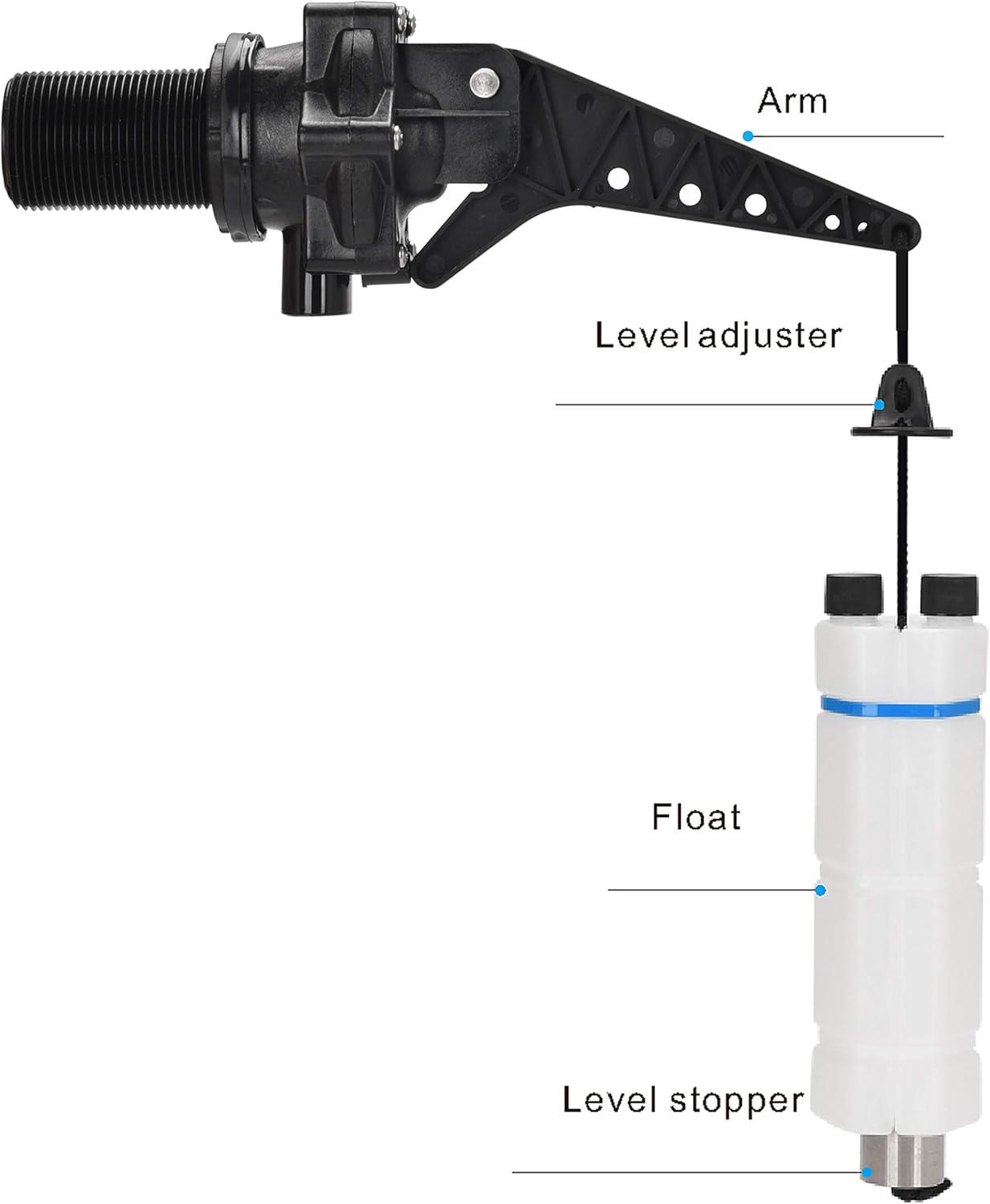

• 3.WORK PRINCIPLE：It fits easily through a thin walled tank or screws into a threaded tank inlet.As the tank empties,the float travels down the cord until it hits the level topper.The valve then opens immediately to give a full flow.As we discharge te water, the valve now runs constantly and the float rises until it hits the level adjuster. This lifts the arm and the valve shuts down.
• 4.ADVANTAGE：High flow, Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5 m, Keeps pump operation to a minimum, Valve Seal Access System for quick access to valve seal, Ideal for all makes and models of tanks, Available inlet sizes.
• 5.Instruction is included in the package. You can install and use it according to the instruction. If you have any after-sales questions, please feel free to contact us.
