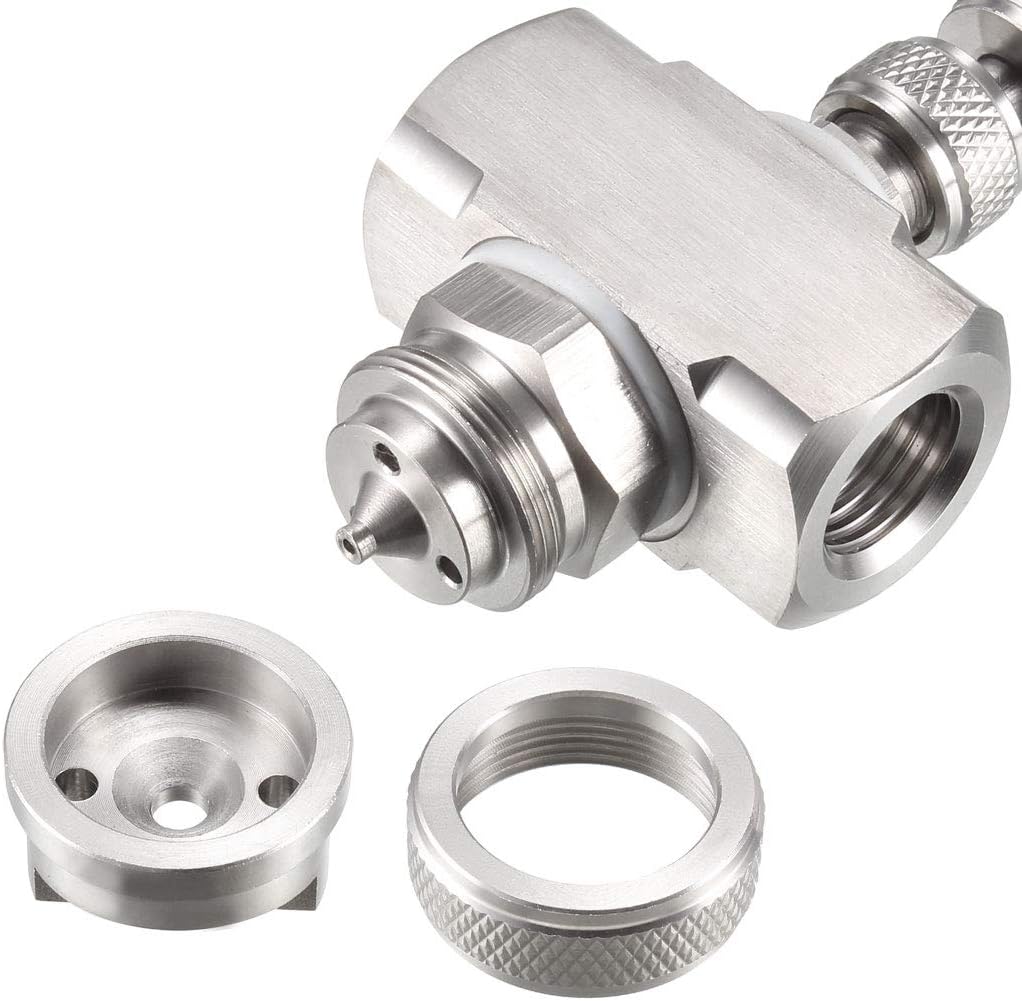

uxcell Air Atomizing Nozzle, 1/4BSPT Misting Low Pressure Mix Type Spray Tip Nozzles
Product details
| Management number | 221579639 | Release Date | 2026/05/03 | List Price | US$9.36 | Model Number | 221579639 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Suitable for space dust, cooling, humidification.- Air atomizing nozzles produce the finest mist of any nozzle type.- The special internal structure of the air atomizing nozzle can make the liquid and gas evenly mixed, producing a fine spray.- The fluid line can be pressurized or supplied using a siphon or gravity fed configuration.- With adjustable needle on the back that has two functions: One is to adjust the spray flow of the product, and the other is to clear the blockage when the nozzle is blocked. Specification:Material: 304 stainless steelThread Size: 1/4BSPTSpray Angle: 80 DegreeTotal Size: 72mm x 40mm x 22mm / 2.83" x 1.57" x 0.87"(L*W*H) Package Content:1 x Air Atomizing Nozzle
- [SIZE] - 1/4 BSPT thread diameter, 80 degree spray angle.
- [ADJUSTABLE NEEDLE] - to adjust the spray flow and clear the blockage.
- [MATERIAL] - Made of stainless steel 304, is superior to regular steel and provides excellent rust resistance.
- [FEATURE] - The special internal structure of the air atomizing nozzle can make the liquid and gas evenly mixed, producing a fine spray.
- [WIDELY USED] - Wetting and rust removal, air humidification, chemical treatment, etc.
| Size | Mix Type |
|---|---|
| Set Name | Size Options |
| Brand Name | uxcell |
| Unit Count | 1.0 Count |
| Valve Type | Needle Valve |
| Thread Size | 1/4 inch |
| Thread Type | Tapered |
| Manufacturer | uxcell |
| Model Number | a19040700ux0508 |
| Material Type | Stainless Steel |
| Connector Type | Threaded |
| Exterior Finish | Stainless Steel |
| Item Dimensions | 2.83 x 1.57 x 0.87 inches |
| Number of Ports | 2 |
| Number of Pieces | 1 |
| Specification Met | ASTM |
| Inlet Connection Type | BSPT |
| Outlet Connection Size | 0.25 Inches |
| Outlet Connection Type | BSPT |
| Manufacturer Part Number | a19040700ux0508 |
